Why Motor Insulation Paper Matters
An electric motor generates heat every time current flows through its windings. Without a reliable barrier between conductors, stray electrical currents cause short circuits, winding burnout, and — in worst cases — fire hazards. Motor insulation paper, also called winding slot liner or coil insulation sheet, serves three primary functions:
- Electrical isolation: prevents current leakage between adjacent conductors and the motor core.
- Thermal management: withstands continuous operating temperatures without degrading its dielectric properties.
- Mechanical protection: guards wire enamel against abrasion during coil insertion and operation.
Research published in IEEE Transactions on Dielectrics and Electrical Insulation confirms that insulation system degradation is responsible for approximately 30–40% of all motor failures, with thermal aging identified as the single most significant degradation mechanism (Montanari & Mazzanti, 2004). Selecting the correct dielectric paper for motors is therefore not merely a design choice — it is a reliability imperative.
Understanding Thermal Classes (IEC 60085)
Before exploring specific paper types, it is essential to understand how insulation materials are classified. The international standard IEC 60085 defines thermal classes based on the maximum continuous operating temperature a material can sustain while maintaining adequate electrical performance over its expected service life (typically 20,000 hours).
| Thermal Class | Max. Temperature (°C) | Typical Materials | Common Motor Applications |
|---|---|---|---|
| Class A | 105°C | Cotton, silk, standard cellulose paper | Low-power household motors |
| Class B | 130°C | Mica, fibreglass + organic binder | General-purpose industrial motors |
| Class F | 155°C | Nomex®, polyester-cellulose composites | HVAC, servo motors, traction drives |
| Class H | 180°C | Pure aramid, silicone-glass laminates | High-performance industrial, aerospace |
| Class C | >180°C | Mica, PTFE, ceramic-filled composites | Furnace motors, turbines, downhole tools |

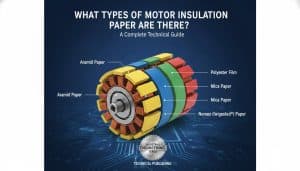

Major Types of Motor Insulation Paper
The market offers a broad spectrum of electric motor insulating paper, each engineered for specific thermal, chemical, and mechanical demands. Below is a detailed breakdown of every major category you are likely to encounter.
1. Cellulose-Based Insulation Paper (Electrical Press Board / Cable Paper)
The oldest and most widely used form of motor slot insulation, cellulose paper is manufactured from refined wood pulp and calendered to precise thicknesses. Common variants include:
- Cable paper (kraft paper): Used as inter-turn insulation in low-voltage motors. Dielectric strength typically ranges from 8–15 kV/mm.
- Electrical pressboard: A denser, stiffer form used for slot liners in larger motors. Can withstand moderate mechanical stress during coil insertion.
Cellulose-based materials are economical and widely available, but their thermal rating is limited to Class A (105°C) and they are susceptible to moisture absorption, which significantly degrades dielectric performance. For applications where humidity control is difficult, alternative synthetic insulation paper is strongly preferred.
2. Aramid Paper (Nomex® and Equivalents) — Class F & H
Aromatic polyamide (aramid) paper represents the most significant advancement in motor winding insulating materials over the past five decades. Originally developed by DuPont under the trade name Nomex®, aramid paper is now available from multiple suppliers as a generic high-performance alternative.
Key properties include:
- Thermal class F (155°C) to H (180°C) depending on thickness and formulation.
- Inherently flame-retardant — does not melt or drip when exposed to flame.
- Excellent chemical resistance to transformer oils, refrigerants, and common motor solvents.
- Dielectric strength of 15–25 kV/mm (ASTM D149).
- Superior resistance to moisture compared to cellulose alternatives.
Aramid paper is the dominant choice for slot liner applications in servo motors, variable-frequency drive (VFD)-fed motors, and traction motors used in electric vehicles. Its higher cost relative to cellulose is more than offset by extended motor service life in demanding environments.
3. Polyester Film and Polyester-Cellulose Composites (DMD, NMN, NHN)
One of the most versatile families of motor insulation laminate is the composite sheets formed by bonding polyester film (Mylar®/PET) with cellulose or aramid substrates. Common abbreviations and their compositions:
| Designation | Structure | Thermal Class | Dielectric Strength |
|---|---|---|---|
| DMD | Polyester film (D) / Cellulose mat (M) / Polyester film (D) | Class B (130°C) | 12–18 kV/mm |
| NMN | Nomex® (N) / Cellulose mat (M) / Nomex® (N) | Class H (180°C) | 18–22 kV/mm |
| NHN | Nomex® (N) / Polyimide film (H) / Nomex® (N) | Class H+ (>180°C) | 22–30 kV/mm |
| DM | Polyester film (D) / Cellulose mat (M) | Class B (130°C) | 10–16 kV/mm |
| NM | Nomex® (N) / Cellulose mat (M) | Class F (155°C) | 15–20 kV/mm |
DMD and NMN composites are particularly popular for stator slot liners, phase separators, and end-winding covers because they combine the flexibility of fibrous layers with the dielectric barrier of a polymer film. The middle mat layer also allows the composite to be easily cut and formed into complex slot geometries without cracking.
4. Polyimide Film (Kapton®-Based Paper)
Polyimide film — widely known by the DuPont trade name Kapton® — is the gold standard for extreme-temperature high-temperature motor insulation. While technically a film rather than a paper, it is often used in paper-like formats as inter-turn or ground insulation in Class H and Class C motors.
- Continuous operating temperature up to 220–260°C.
- Outstanding dielectric strength of 150–300 V/µm.
- Excellent resistance to radiation, making it suitable for nuclear-plant motors.
- Used extensively in aerospace motors and downhole oil-well pump motors.
Its primary limitation is cost — polyimide film can be 10–15× more expensive than aramid paper, making it reserved for mission-critical applications where failure is not an option.
5. Mica Paper and Mica-Glass Composites
Mica paper is manufactured by delaminating natural mica flakes and reconstituting them into continuous sheets, sometimes reinforced with fibreglass or polyester film. It offers unique advantages:
- Excellent corona and partial discharge resistance — critical in medium-voltage motors (>1 kV).
- Thermal class up to C (>180°C).
- Good resistance to tracking and surface arcing.
Mica-based coil insulation paper is the standard choice for form-wound coils in medium- and high-voltage motors (2.3 kV–13.8 kV) in power generation plants, compressors, and large pumps.
Real-World Application Scenarios
Application 1: VFD-Driven Motors and Surge Voltage Stress
Variable-frequency drives (VFDs) produce fast-rising voltage pulses (high dV/dt) that can stress conventional insulation systems far beyond their nameplate rating. In such applications, aramid composite insulation sheets — particularly NMN and NHN grades — are recommended due to their superior partial-discharge resistance. A 2019 study in the IET Electric Power Applications journal demonstrated that aramid-based slot liners extended VFD motor service life by 40% compared to DMD laminates under identical pulse voltage conditions (Cavallini et al., 2019).
Application 2: EV Traction Motors
Electric vehicle traction motors must operate reliably across a wide temperature range (-40°C to +180°C) while maintaining high power density. Thin-gauge aramid paper (0.08–0.13 mm) is preferred for slot liners in hairpin windings because it allows more copper fill in the stator slot, improving efficiency. Many OEMs specify proprietary grades that meet both UL 94 V-0 flame ratings and IEC 60085 Class H thermal requirements simultaneously.
Application 3: Oil-Filled and Hermetic Motors
In hermetically sealed compressor motors (used in refrigeration and air-conditioning), the insulation paper is continuously immersed in refrigerant oils. Cellulose paper swells unacceptably in these conditions, so polyester-film composite laminates (DMD or DM grades) impregnated with refrigerant-compatible varnishes are standard. The paper must also be free of chlorinated compounds that could contaminate the refrigerant circuit.
Application 4: High-Altitude and Low-Pressure Environments
At high altitudes, reduced air pressure lowers the partial discharge inception voltage, increasing the risk of corona damage to insulation. Motors used in aircraft, high-altitude wind turbines, and mountain-top installations typically require void-free insulation systems — achieved by vacuum pressure impregnation (VPI) of mica paper composites — to eliminate air pockets where corona could initiate.
How to Choose the Right Motor Insulation Paper
Selecting the appropriate motor winding paper involves balancing five key engineering parameters:
- Thermal class required: Match the insulation thermal class to the motor’s design temperature rise plus maximum ambient temperature, with at least 10°C of margin.
- Voltage level: Motors above 600 V require corona-resistant insulation; mica composites are preferred for medium-voltage windings.
- Mechanical demands: High-speed motors or those using automated coil insertion equipment need stiffer, more puncture-resistant laminates.
- Chemical environment: Exposure to oils, refrigerants, or solvents requires polyester or aramid substrates; cellulose paper is not suitable.
- Space factor: Thinner paper allows higher copper fill. Weigh dielectric margin against winding efficiency requirements.
A useful rule of thumb in motor design: never specify insulation that exactly meets the application’s minimum requirement. Always allow at least one thermal class above the expected operating temperature to account for hot-spot variations, transient overloads, and manufacturing tolerances.
For detailed slot liner geometry calculations and material selection worksheets, visit our online insulation selection tool — a free resource for motor designers and procurement engineers.
Recommended Products for Motor Insulation
With decades of experience supplying electrical insulating paper to motor manufacturers worldwide, our team has curated a core product range covering every major application category.
NMN Aramid Composite Slot Liner
Class H (180°C) · Thickness: 0.15 mm / 0.20 mm / 0.25 mm
Our flagship Nomex®-equivalent composite insulation paper, engineered for servo, traction, and VFD-driven motors. Combines outstanding dielectric strength (>20 kV/mm) with excellent flexibility for automated slot insertion. Available in roll and pre-cut sheet formats.
DMD Polyester-Cellulose Laminate
Class B (130°C) · Thickness: 0.20 mm / 0.25 mm / 0.30 mm
The go-to DMD insulation paper for general-purpose industrial motors, pumps, and compressors. Excellent balance of cost, dielectric performance, and mechanical toughness. Certified to IEC 60626 and ASTM D202 standards.
NHN Polyimide Composite Sheet
Class H+ (>180°C) · Thickness: 0.10 mm / 0.15 mm / 0.20 mm
For extreme-temperature and high-voltage motor applications where standard aramid paper falls short. The polyimide core layer delivers superior partial-discharge resistance and long-term thermal stability. Ideal for aerospace and downhole motor specifications.
Need a custom thickness, width, or certification package? Our engineering team offers sample kits, technical datasheets, and qualification support. Contact us via sales@example.com or visit example.com to submit a product enquiry. You can also reach our technical sales line at +86-XXX-XXXX-XXXX (Monday–Friday, 08:00–18:00 CST).
Frequently Asked Questions
What is the difference between DMD and NMN insulation paper?
DMD (polyester film / cellulose mat / polyester film) is a Class B material rated to 130°C, while NMN (Nomex® / cellulose mat / Nomex®) is a Class H material rated to 180°C. NMN offers significantly better thermal endurance, flame resistance, and moisture resistance, making it the preferred choice for demanding or safety-critical motor applications. DMD is more economical and remains suitable for standard industrial motors operating within Class B temperature limits.
Can cellulose insulation paper be used in refrigerant-cooled motors?
No. Cellulose-based papers absorb moisture and swell when exposed to refrigerant oils, leading to dielectric failure. Hermetically sealed motors in air-conditioning and refrigeration systems must use polyester-cellulose composites (DM or DMD) or fully synthetic laminates that are chemically compatible with the refrigerant and lubricant system.
What thickness of slot liner paper should I use?
Typical slot liner thicknesses range from 0.10 mm (for compact, high-fill motors) to 0.30 mm (for medium-voltage motors requiring robust ground insulation). The selection depends on the motor’s voltage class, slot geometry, and copper fill factor targets. For motors below 690 V, 0.15–0.25 mm NMN or DMD is standard. For 3.3 kV–6.6 kV motors, thicker mica composites (0.5–1.0 mm after VPI) are typically required. Our insulation selection tool can help you calculate the optimal liner thickness for your design.
Is aramid paper the same as Nomex®?
Nomex® is DuPont’s registered trade name for meta-aramid paper, which was the first commercially available product of this type. Today, several manufacturers produce equivalent meta-aramid insulation papers that meet the same IEC and ASTM standards. When specifying “aramid paper” or “Nomex® equivalent,” always confirm that the material meets the required thermal class (typically Class H), dielectric strength, and any additional certifications (UL, IEC) demanded by your application or end customer.
How do I test whether motor insulation paper has degraded?
Common field tests include insulation resistance measurement (megger test, per IEEE 43), polarization index (PI) testing, and hi-pot (AC or DC withstand) testing. In laboratory settings, tensile strength retention and dielectric breakdown voltage (ASTM D149) after thermal aging per IEC 60216 are the standard methods for evaluating insulation paper life. If PI values fall below 2.0 for older motors, or if breakdown voltage drops more than 30% from original specifications, insulation replacement should be considered.
What standards govern motor insulation paper specifications?
Key international standards include: IEC 60085 (thermal classification), IEC 60626 (combined flexible materials for electrical insulation), IEC 60216 (thermal endurance evaluation), ASTM D202 (sampling and testing electrical insulating paper), and IEEE 43 (insulation resistance testing of rotating machinery). Motor manufacturers often supplement these with proprietary qualification requirements. Our products are certified to IEC 60085, IEC 60626, and ASTM D202 as standard; UL and other regional certifications are available on request.
Conclusion
Choosing the right motor insulation paper is one of the most consequential decisions in motor design and maintenance. From economical cellulose pressboard for Class A applications to high-performance NHN polyimide composites for extreme-temperature environments, every category of electrical insulating paper has a defined role in the motor insulation system hierarchy.
The key takeaway is clear: match the insulation system to the most demanding condition the motor will actually face — whether that means elevated temperature, chemical exposure, mechanical stress, or high-frequency voltage pulses from VFDs. Upgrading from DMD to NMN, or from Class F to Class H, is almost always more cost-effective than a premature motor rewind or replacement.
As motor designs continue to evolve — driven by electrification, miniaturization, and higher power densities — the role of advanced motor winding insulation materials will only grow in importance. Staying current with IEC standards and working with a technically capable insulation supplier is the best investment a motor manufacturer or end-user can make in long-term reliability.
For tailored product recommendations, free samples, or engineering consultation, contact our team at example.com or email sales@example.com. We ship globally with short lead times and comprehensive technical documentation.
References
- Montanari, G. C., & Mazzanti, G. (2004). From thermodynamic to phenomenological multi-stress models for insulating materials without or with evidence of thresholds. Journal of Physics D: Applied Physics, 37(8), 1113–1123. https://doi.org/10.1088/0022-3727/37/8/001
- Cavallini, A., Montanari, G. C., & Tozzi, M. (2019). Partial discharge diagnostics for inverter-fed motors: Methods and results. IET Electric Power Applications, 13(6), 770–779.
- IEC 60085:2007. Electrical insulation — Thermal evaluation and designation. International Electrotechnical Commission.
- IEC 60626:2008. Combined flexible materials for electrical insulation. International Electrotechnical Commission.
- ASTM D149-09(2022). Standard Test Method for Dielectric Breakdown Voltage and Dielectric Strength of Solid Electrical Insulating Materials at Commercial Power Frequencies. ASTM International.
- IEEE Std 43-2013. IEEE Recommended Practice for Testing Insulation Resistance of Electric Machinery. IEEE.
- Stone, G. C., Boulter, E. A., Culbert, I., & Dhirani, H. (2004). Electrical Insulation for Rotating Machines: Design, Evaluation, Aging, Testing, and Repair. IEEE Press / Wiley-Interscience.
